OETIKER Stainless Steel Screw Clamp WD12- StepLess Screw Clamp W4

Choice of engagement positions: clamp can be adjusted to several different nominal diameters
Narrow Band: concentrated transmission of clamping force, complies with SAE J1508 Type SSPC
360° StepLess®: uniform 360° compression and constant surface pressure
Burr-free strip edges: reduced risk of damage to the part being clamped
Self-tensioning: compensates for thermal cycle diameter changes

Detail

OETIKER Stainless Steel Screw Clamp WD12- StepLess Screw Clamp W4

Material
178 Band, spacer, retaining elements (D-nut):
Stainless Steel, Material no. 1.4301/UNS S30400
Screw: Stainless Steel, Material no. 1.4319/UNS S30200
Spring: 17-7PH (aerospace quality

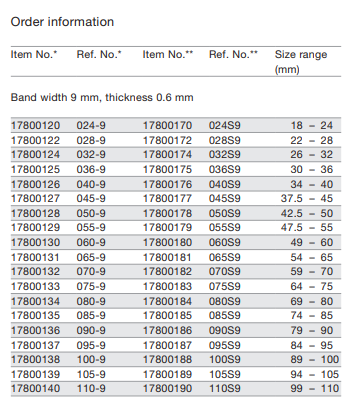

Series
Size range width x thickness
18.0 – 255.0 mm 9.0 x 0.6 mm

Oetiker StepLess® Screw Clamps are available in two versions:
Oetiker StepLess® Screw Clamps and Self-Tensioning StepLess®
Screw Clamps.
Material thickness
Oetiker StepLess® Screw Clamps and Self-Tensioning StepLess®
Screw Clamps are made from strip material 9 mm wide and
0.6 mm thick. The dimensions of the strip ensure optimum sealing
with EPDM rubber and silicone hoses, while taking into account
the necessary radial force, the compressibility of the hose, the
sealing/retaining properties and the environmental conditions.
Interlock
The closure is a mechanical interlock whose function is to provide
secure retention of the round clamp geometry. The interlock
can be opened to permit radial assembly of the clamp, and at
the same time provides a simple way of relocating the interlock
features to obtain alternative diameters prior to tightening.
