Carriage for Personal Fall Protection Devices

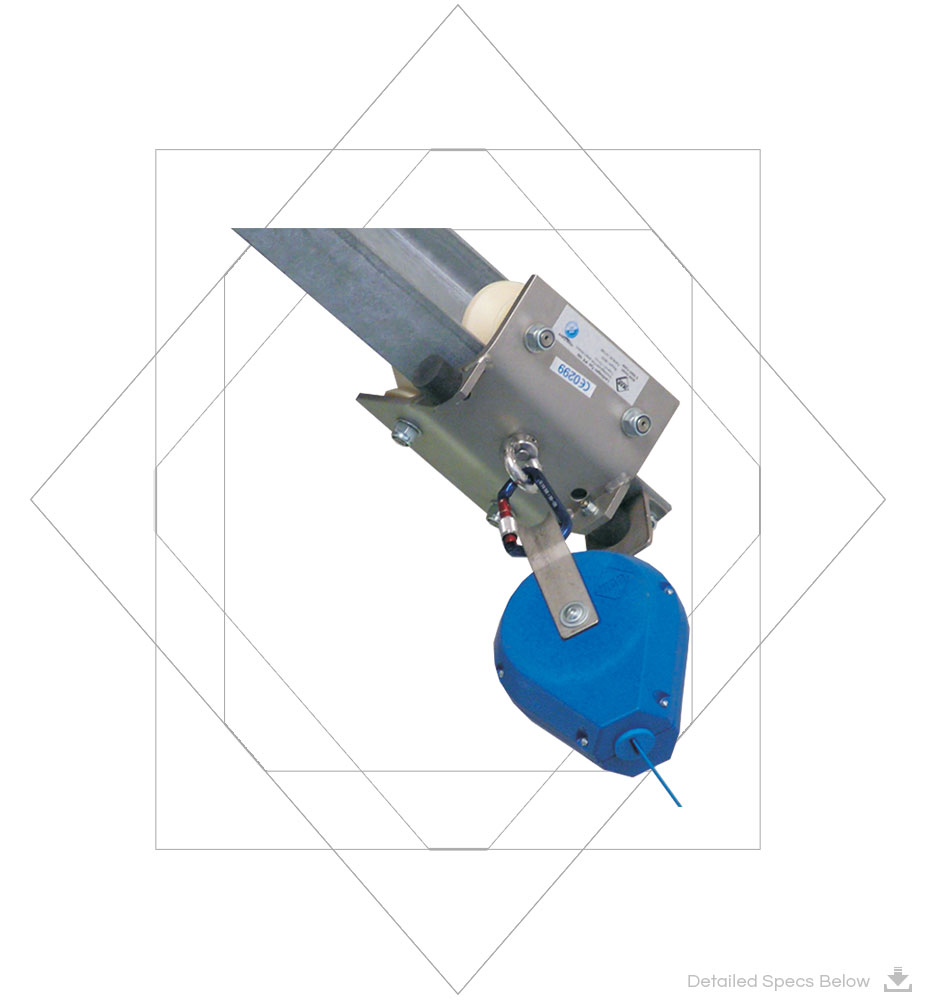

The IKAR carriage is a mobile anchorage point for securing one person to an existing construction. The existing construction must be able to withstand the forces in the direction of the load which arises in case of a fall (compliant with EN 795 = 10Kn, verification by the technical construction regulations).

Sizes : Various IPE beam sizes IPE 100, 120, 160, 200, 270, 360

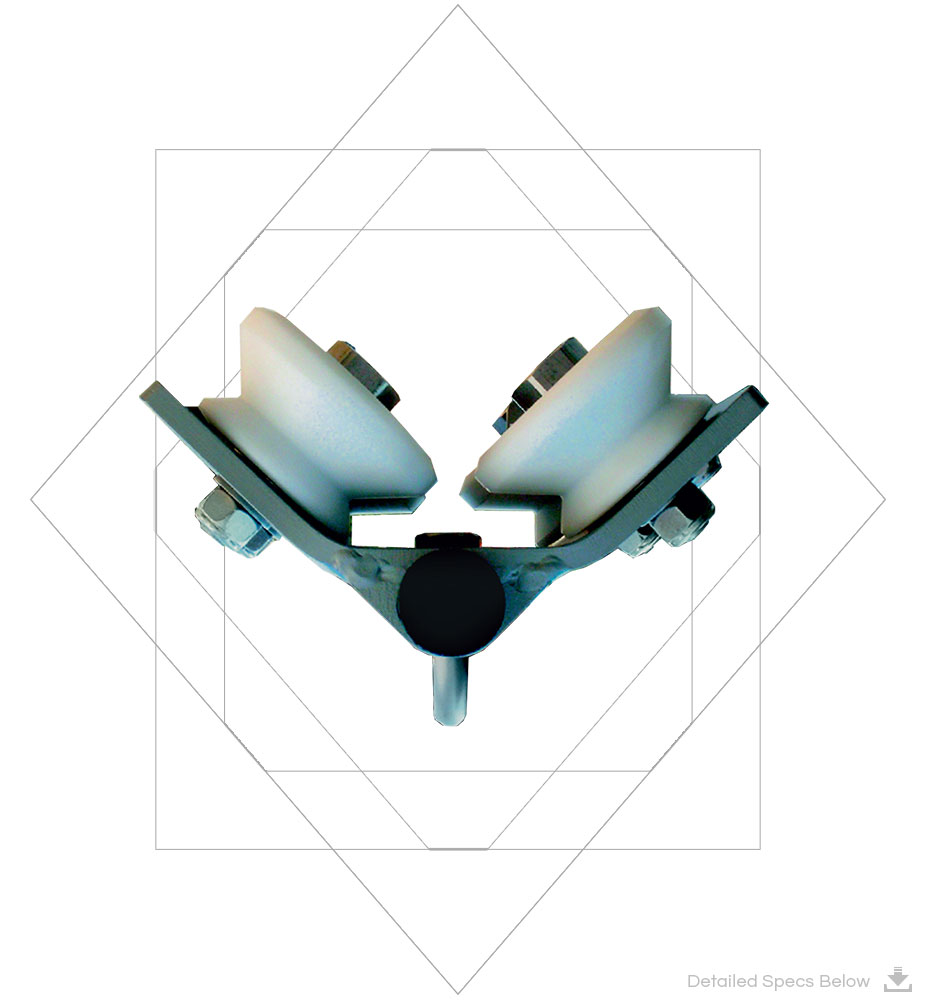

Features : Smooth-running design due to guide rollers with dual ball-bearings

Track clearance adjustable with eccentric bolts on the carriage for optimum play-free running performance

Low-noise running characteristics due to polyamide rollers

Automatically follows in a vertical position above the user

Impact bumpers mounted on both sides

Standard : Tested as a mobile anchorage device for personal safety devices in accordance with EN 795:1996/Class B

Model Number : 41-LW
