Heat Traced Combination

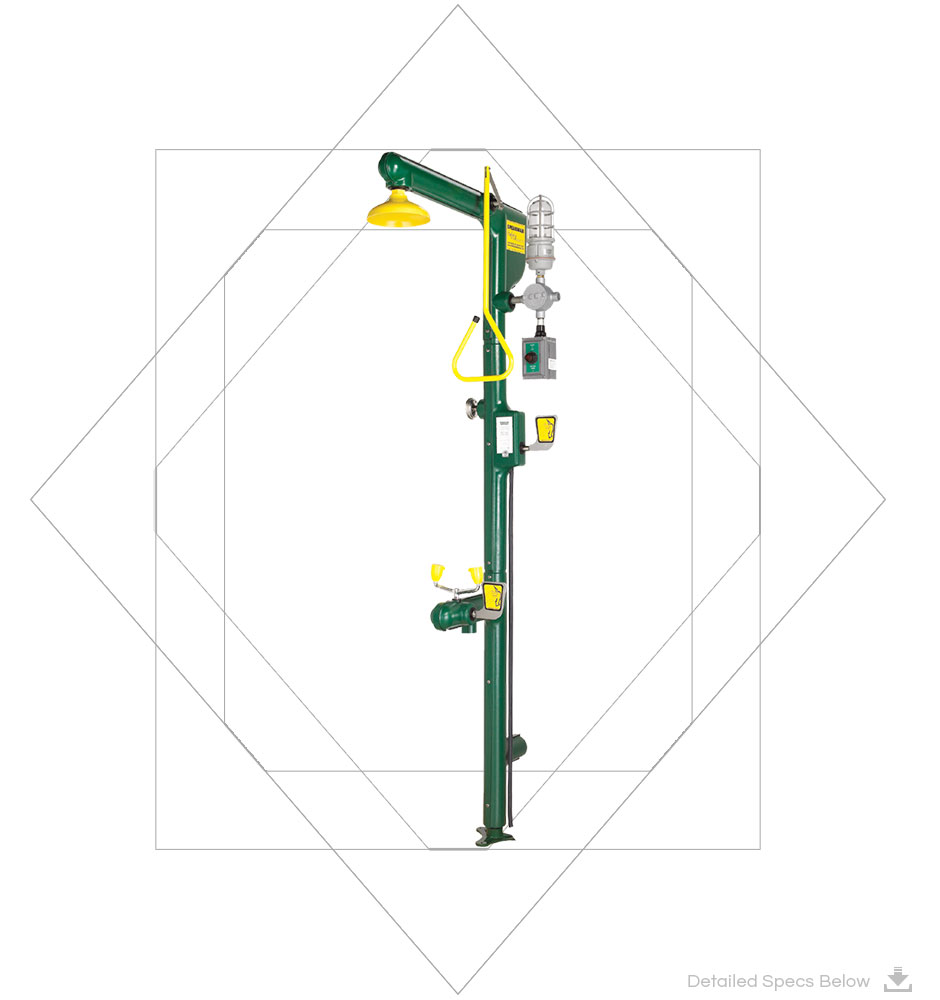

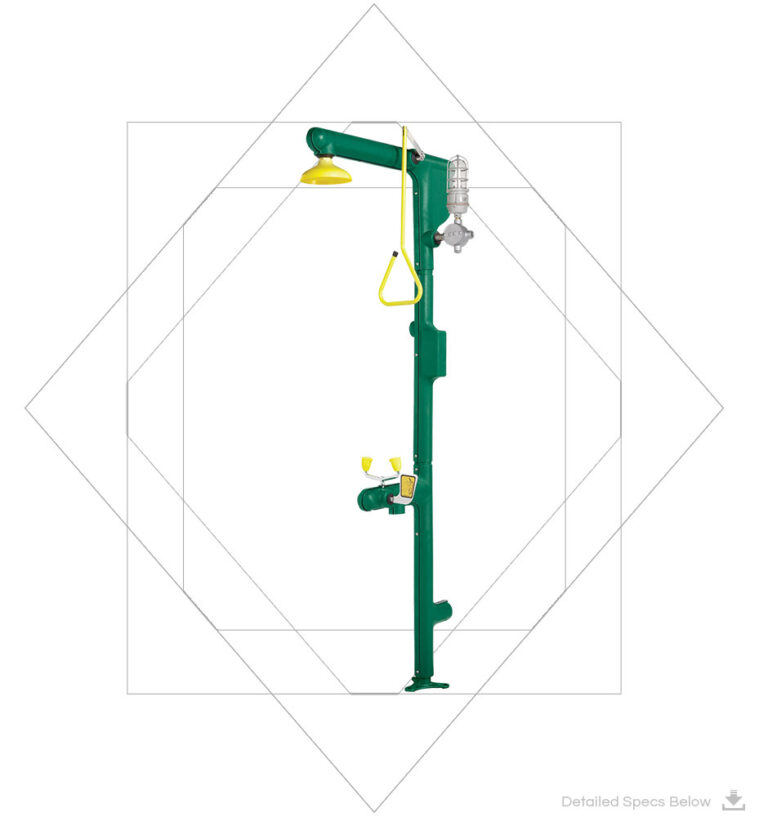

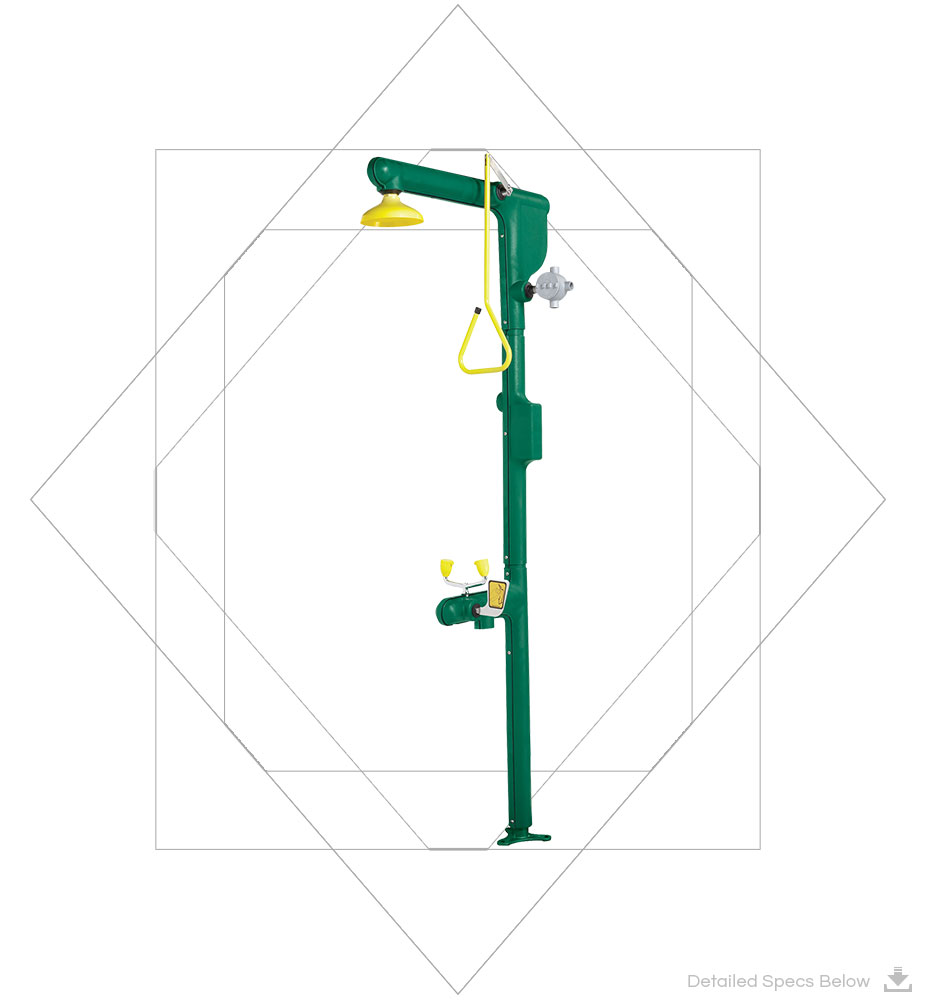

    Heat Traced Combination Tepid Water Solutions - Temperature Control for Safety Showers

    • Heat Traced Combination Tepid Water Solutions for emergency shower and eye/face wash stations.
    • Features an 8 inch diameter high performing yellow plastic shower head and yellow plastic spray outlets with automatic flow control and flip-top dust caps.
    • Freeze valve activates automatically below 40 degree F and protects unit from freezing in case of power outage.Easy to access plastic shell.

Detail

    Heat Traced Combination Tepid Water Solutions - Temperature Control for Safety Showers

    Features : 8 inch diameter high performing yellow plastic shower head.

    Freeze valve activates automatically below 40 degree F and protects unit from freezing in case of power outage.

    1 inch NPTF chrome plated brass stay-open ball valve, 1 inch IPS galvanized steel pipe.

    1 inch NPT male top or bottom supply inlet, 20 GPM @ 30 psi shower, Closed cell rubber foam insulation.

    Yellow plastic spray outlets with automatic flow control and flip-top dust caps, 120 vac, 60 cycle, single phase.

    ½ inch NPT, 3-way chrome plated brass ball valve, 4.5 GPM @ 30 psi eye-face wash.

    Stainless steel push handle activated eye/face wash, Self-regulating heating cable with braided metal shield

    Thermostat is preset, hermetically sealed single pole contact switch with temperature range of 60 degree F to 70 degree F

    NEMA 4X water tight and dust tight, suitable for indoor or outdoor locations junction box.Ground Fault Protection: Installation will require minimum 30 mA GFPD, Electrical Classification Class 1 Division 2 GRP, B, C, D.

    Activated by powder coated high visibility yellow, aluminum triangular pull rod.
